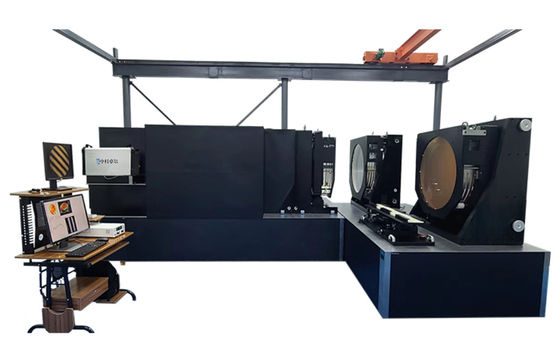

Ф800mm Large Aperture Horizontal Laser Interferometer
Application Area
Laser interferometers take light wave as carrier. They have the below characteristics: high accuracy
of measurement , fast measurement speed, large measurement range and high resolution. Therefore,
laser interferometers are widely used in the quality control and calibration of precision instruments
such as CNC machine tools, PCB drilling machines, coordinate measuring machines, displacement
sensors, as well as in R&D, high-end equipment manufacturing and other fields.
Working Principle
Measurements are made by using optical principles.
Features
| Model | INF-HL-800 |
|
Clear Aperture |
Ф800mm |
| Phase-shifting Mode | Wavelength tuning phase-shifting |
|
CCD Resolution |
2.3K*2.3K Pixel / 3.4K*3.4K Pixel |
| System Accuracy | PV ≤ λ/12 |
|
System repeatability accuracy |
RMS ≤ λ/2000(2σ) |
| Note: Customized production available. | |
Product Benefits
→ Dual port test system and excellent imaging technology
→ Horizontal configuration , easy to operate and use
→ Wavelength tuning phase- unwrapping analysis system
Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
