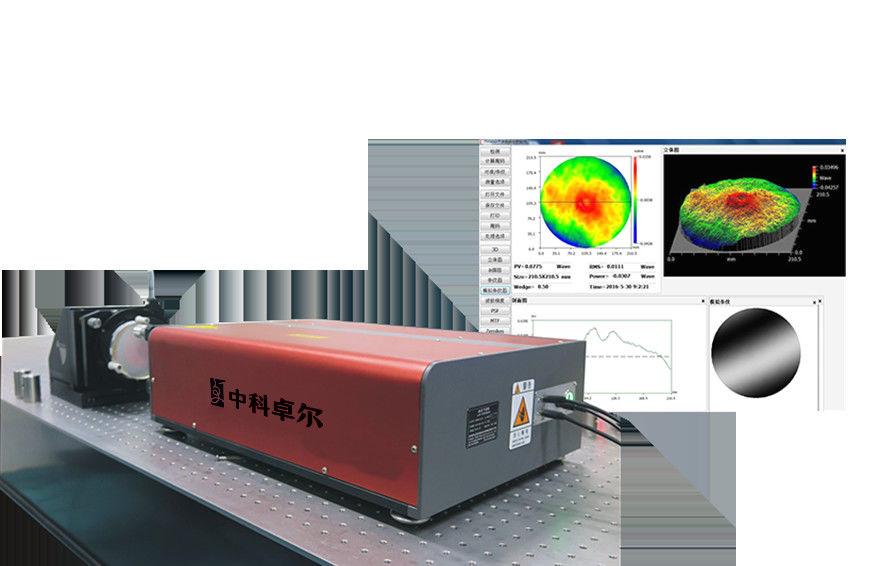

Ф60mm Horizontal Sphere Laser Interferometer
Application Area
Precision instruments for detecting the surface shape of optical elements, wavefront aberration of optical
lenses and optical materials uniformity.
Working Principle
Detecting based on principles of optics.In addition,it can be used along with various refractors reflectors
to measure linear position, velocity, angle, flatness, straightness, parallelism and perpendicularity,etc.
Features
| Model | INF-SL-60 |
|
Clear Aperture |
Ф60mm |
| Phase-shifting Mode | Mechanical phase-shifting |
|
CCD Resolution |
1024 * 1024Pixel |
| TF | PV ≤ λ/20 |
| System Accuracy | PV ≤ λ/15 |
|
System repeatability accuracy |
RMS ≤ λ/2000(2σ) |
| Note: Customized production available. | |
Product Benefits
→ Excellent imaging technology
→ Horizontal configuration, great expansibility
→ Quick phase- unwrapping analysis system
