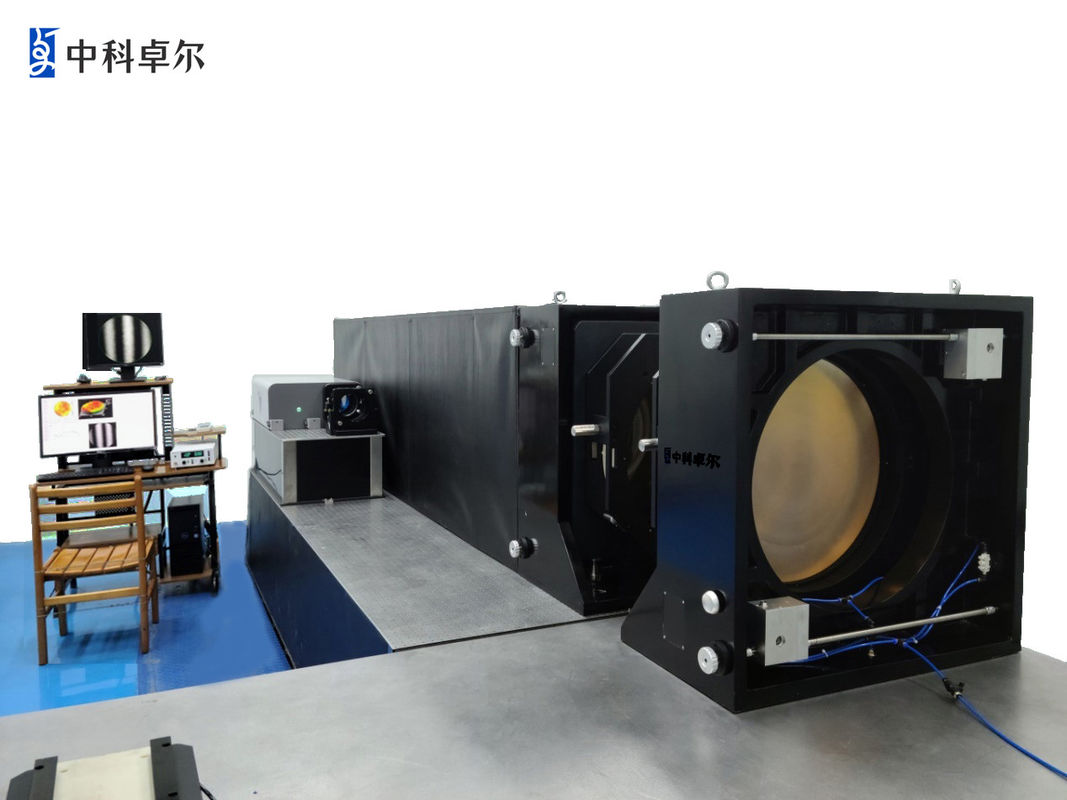

Ф450mm Large Aperture Horizontal Laser Interferometer
Application Area
Measure the optical properties of materials, such as thickness, distance;
Measure more precise parameters internal materials, such as optical uniformity, refractive index, and
surface smoothness.
Working Principle
Laser interferometer system includes emitting laser, reflector, oscillator, encoder, scanner, as well as
electronic circuits and software system for detection, adjustment and data output.
The laser beam emitted by the emitting laser passes through a reflector and oscillator to form a vertical
or horizontal injection laser beam and a reference laser beam. Then, it is reflected and interfered on the
surface of the object, and is circulated to an external scanner for linear scanning measurement.Based
on the aforesaid scanning results, encoder outputs data. Finaly the computer achieves fast and accurate
measurement and analysis like surface roughness, effective shape, etc.
Features
| Model | INF-HL-450 |
|
Clear Aperture |
Ф450mm |
| Phase-shifting Mode | Wavelength tuning phase-shifting |
|
CCD Resolution |
1.2K*1.2K Pixel / 2.3K*2.3K Pixel |
| System Accuracy | PV ≤ λ/20 |
|
System repeatability accuracy |
RMS ≤ λ/2000(2σ) |
| Note: Customized production available. | |
Product Benefits
→ Dual port test system and excellent imaging technology
→ Horizontal configuration , easy to operate and use
→ Wavelength tuning phase- unwrapping analysis system
Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
