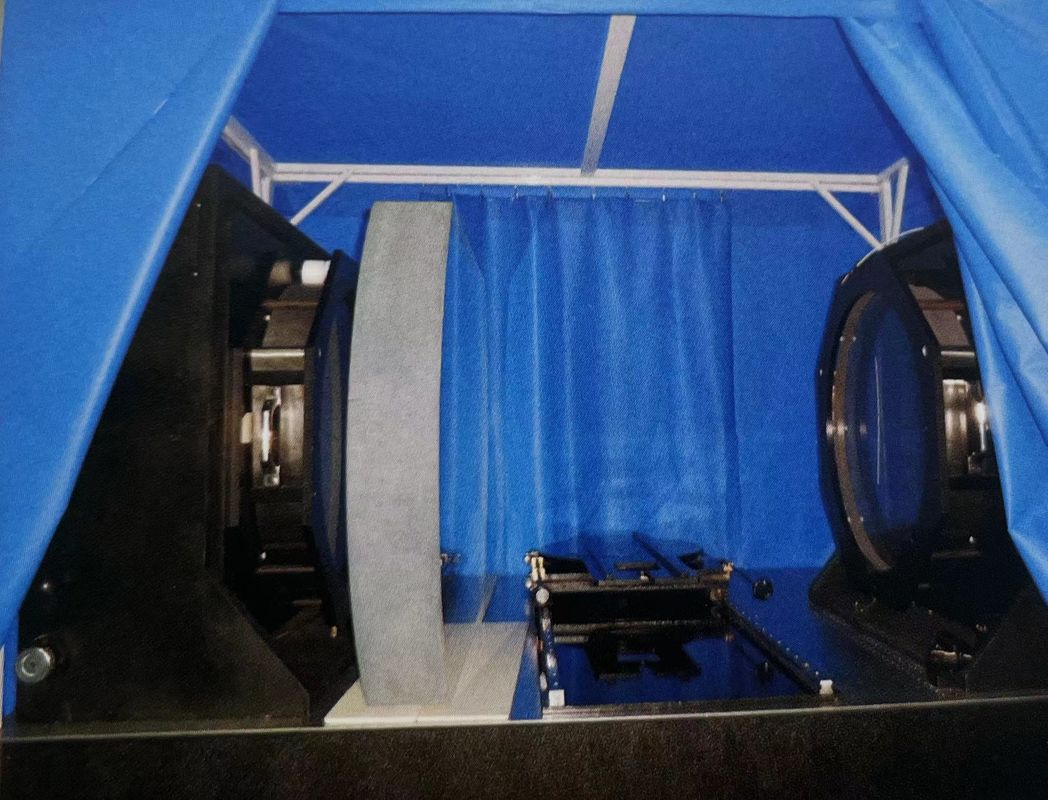

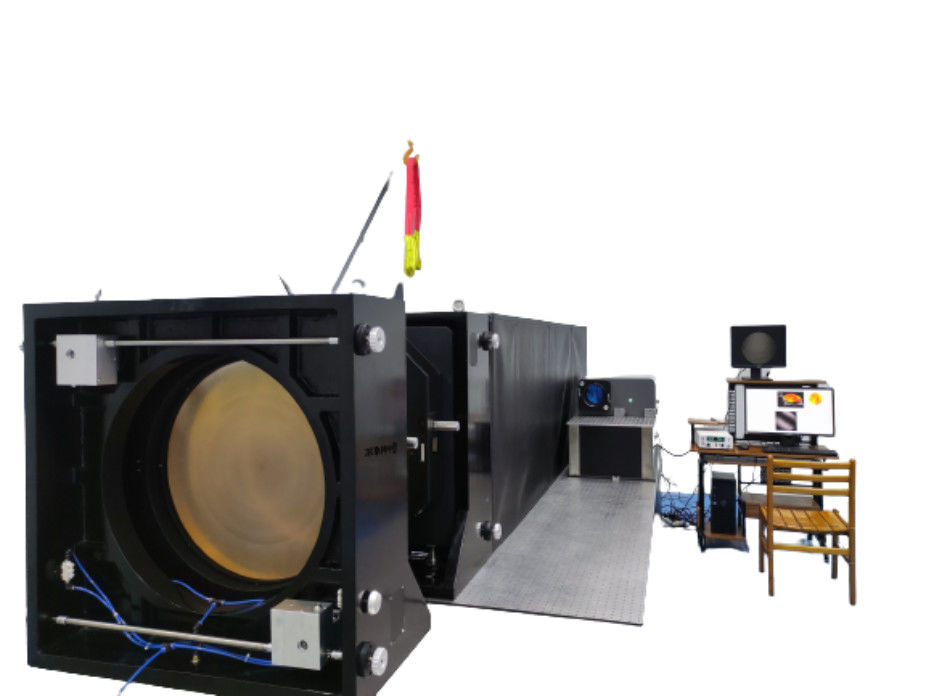

Ф600mm Large Aperture Laser Interferometer Measuring System Horizontal

Ф600mm Large Aperture Horizontal Laser Interferometer


Application Area
Laser interferometer is a geometric measurement instrument that uses a laser beam to measure the
geometric shape and dimensional characteristics of an object's surface. It is the most precise instrument
in physical measurement field. Quickly and accurately measure, analyze and monitor the basic forms of
substance.
① Length precise measurement;
② Refractive index measurement;
③ Wavelength measurement;
④ Inspect the quality of optical components;
⑤ Used as a high-resolution spectrometer;

Working Principle
Laser interferometer uses laser as a length reference to measure the position accuracy (positioning
accuracy, repeated positioning accuracy...) and geometric accuracy (pitch, torsion, pendulum angle,
straightness, verticality...) of CNC equipment (machining centers, three-coordinate measuring machines
...) .


Features


Product Benefits
→ Dual port test system and excellent imaging technology
→ Horizontal configuration , easy to operate and use
→ Wavelength tuning phase- unwrapping analysis system

Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
