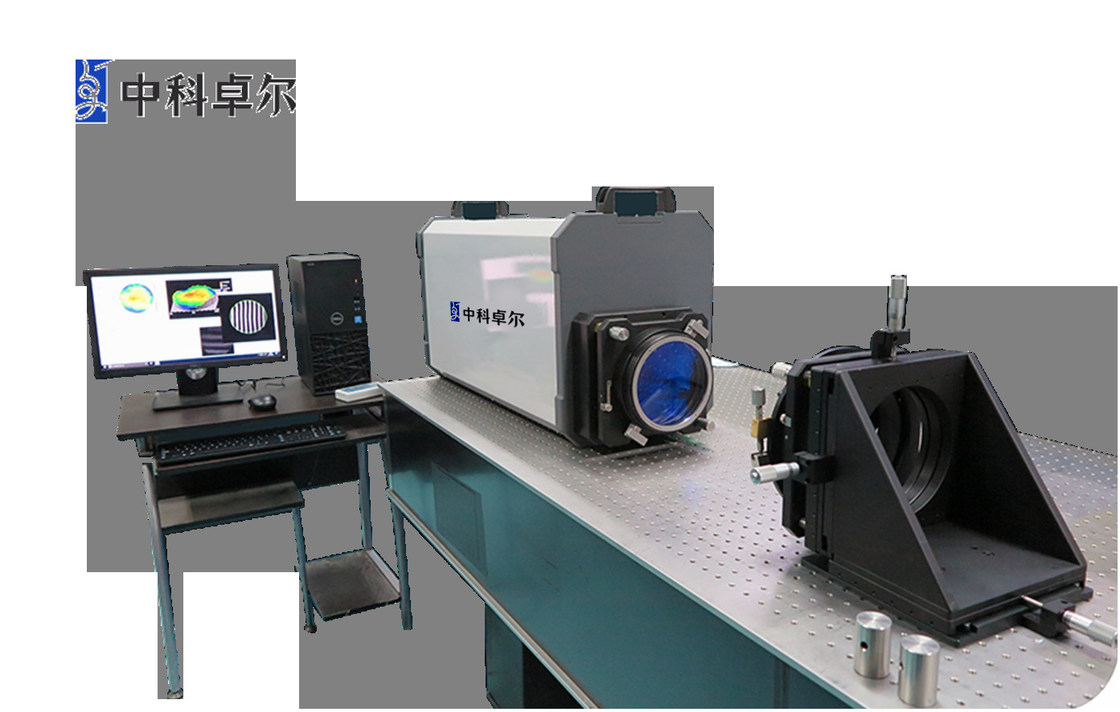

Ф500mm Large Aperture Horizontal Laser Interferometer System For Surface Shape

Ф500mm Large Aperture Horizontal Laser Interferometer


Application Area
1. Surface shape;
2. Curvature test ;
3. Surface flatness or surface roughness;
4. To measure whether the both sides of the glass are flat enough;
5. Angle testing: Some optical components have angles, which can be used to measure their accuracy ;
6. Stress testing: such as glasses or camera lenses, can test the glass deformation when it is clamped

    with other objects.

Working Principle

The laser interferometer emits a single frequency beam of light, which is divided into two beams after

entering the linear interferometer and directed towards the reflector. These two beams are then reflected

back to the spectroscope, finally converg again and back to the laser interferometer.
If the optical path difference does not change, the laser interferometer will find a stable signal between

the two poles of the constructive and destructive interference. If the optical path difference change,

these changes will be calculated and used to measure the difference between the two optical paths.


Features


Product Benefits
→ Dual port test system and excellent imaging technology
→ Horizontal configuration , easy to operate and use
→ Wavelength tuning phase- unwrapping analysis system

Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
