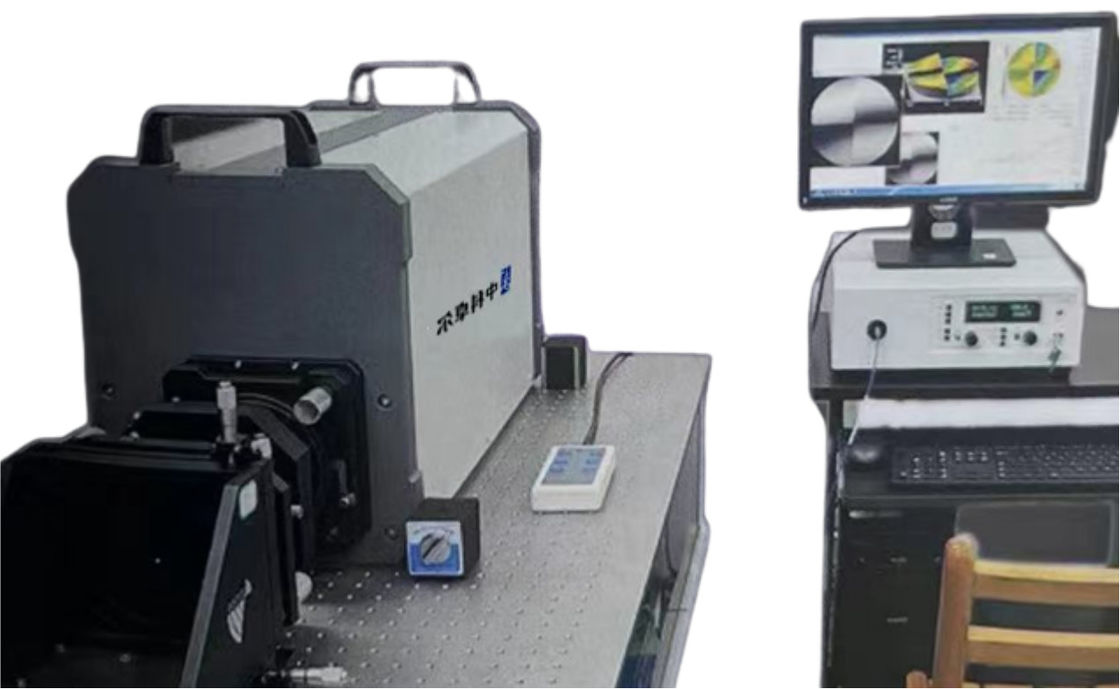

Sphere Laser Interferometer in Optical Process
Application Area
Position accuracy detection and automatic compensation;
Geometry accuracy detection,such as straightness, perpendicularity, pitching and deflection, flatness,
parallelism, etc
Working Principle
Interferometer is an instrument made based on the light interference principle. It completely divides two
light beams from the same light source, makes them independently pass through different optical paths,
then merges them, and finally displays interference fringes to accurately and detailedly determinate the
wavelength and fine structure of spectral lines.
Features
| Model | INF-SL-100 |
|
Clear Aperture |
Ф100mm |
| Phase-shifting Mode | Mechanical phase-shifting
Wavelength tuning phase-shifting |
|
CCD Resolution |
1.2K*1.2K Pixel
2.3K*2.3K Pixel |
| TF | PV ≤ λ/20 |
| System Accuracy | PV ≤ λ/15 |
|
System repeatability accuracy |
RMS ≤ λ/2000(2σ) |
| Note: Customized production available. | |
Product Benefits
→ Excellent imaging technology
→ Horizontal configuration, great expansibility
→ Quick phase- unwrapping analysis system
Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
