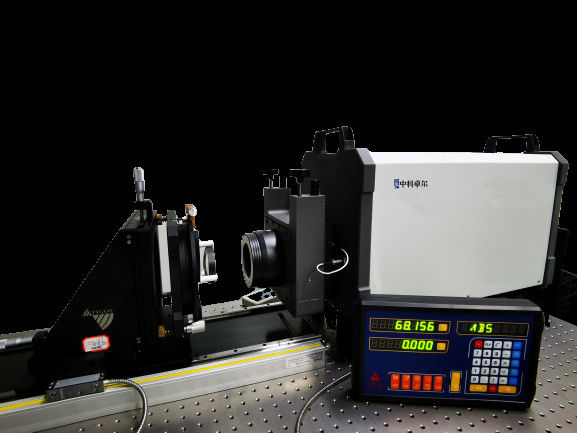

Ф150mm Horizontal Sphere Laser Interferometer
Application Area
Laser interferometer has the characteristics of high accuracy, fast measurement speed, etc. It is widely
used in optical processing industry, such as optical surface profile testing for various lenses, spherical
reflectors, plane optical components and so on.
Working Principle
Detecting based on Fizeau interference principle. Due to the characteristics of high intensity, high
directionality, spatial congruence, narrow bandwidth,high monochromaticity and so on, laser
interferometer has the advantages of high accuracy, small error, high sensitivity, and strong flexibility.
It it a powerful non-contact testing tool.
Features
| Model | INF-SL-150 |
|
Clear Aperture |
Ф150mm |
| Phase-shifting Mode | Mechanical phase-shifting
Wavelength tuning phase-shifting |
|
CCD Resolution |
1024 *1024 Pixel |
| TF | PV ≤ λ/20 |
| System Accuracy | PV ≤ λ/15 |
|
System repeatability accuracy |
RMS ≤ λ/2000(2σ) |
| Note: Customized production available. | |
Product Benefits
→ Excellent imaging technology
→ Horizontal configuration, great expansibility
→ Quick phase- unwrapping analysis system
