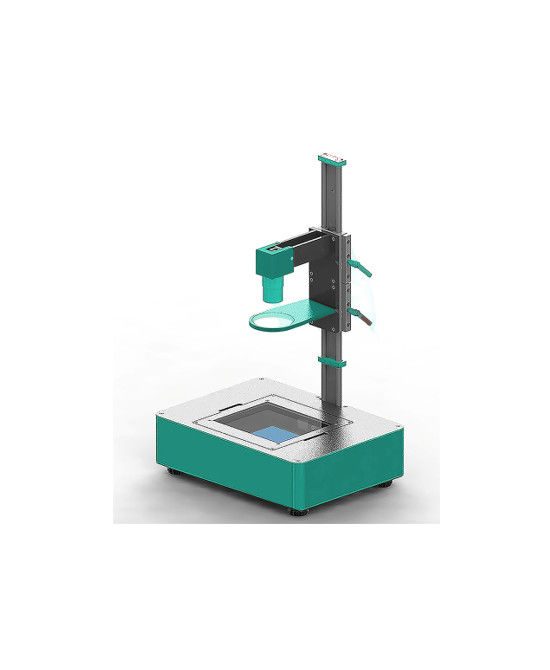

Stress Magnitude Birefringence Measurement System Optical Testing Equipment Real Time
Applications
| UV-ultraviolet | Semiconductor |
| Light source raw material manufacturer | |
|
VIS-visible
|
Lens, optical raw material, film |
| Automotive industry: windshield, vehicle-mounted glass | |
| Transparent resin | |
| PET PMMA | |
| Glass substrate, quartz glass, sapphire | |
| Stress sample testing before and after coating | |
| Food and drug and high-end glass jigs, minerals | |
| Light guide plate, display component | |
| NIR-near-infrared | Infrared equipment processing or assembly |
| Raw material factory | |
| Note: Customized production available. | |
Working Principle
When light penetrates a transparent substance with birefringent property, the light polarization state will change.
The birefringence of the substance is evaluated by comparing the light polarization states before and after the light
penetrates the object. The calculation method is to determine the magnitude of stress birefringence of the sample
by quantitative measurement of optical path difference of the sample through photoelectric vector synthesis and
optical compensation of the polarized light.
Features
| Model | BM1-110, BM1-280 |
| Working Mode | Real-time measurement |
| Function | Stress magnitude, stress distribution |
| Detection Band | VIS-520nm, 590nm, 650nm |
| Testing range | 1~110nm& 1~280nm |
| Spatial Resolution | 0.05mm |
| Measurement Repeatability | 0.1nm |
| Measurement Frequency | >15FPS |
| Note: Customized production available. | |
Detection Images
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
ZEIT Group, founded in 2018, is a company focused on precision optics, semiconductor materials and high-tech intelligence equipments. Based on our advantages in precision machining of core and screen, optical detection and coating, ZEIT Group has been providing our customers with complete packages of customized and standardized product solutions.
Concentrated on technological innovations, ZEIT Group has more than 60 domestic patents by 2022 and established very close enterprise-college-research cooperations with institutes, universities and industrial association worldwide. Through innovations, self-owned intellectual properties and building up the key process experimental teams, ZEIT Group has become a development base for incubating high-tech products and a training base for high-end personnels.
Our products are sold all over the world, you can rest assured.
