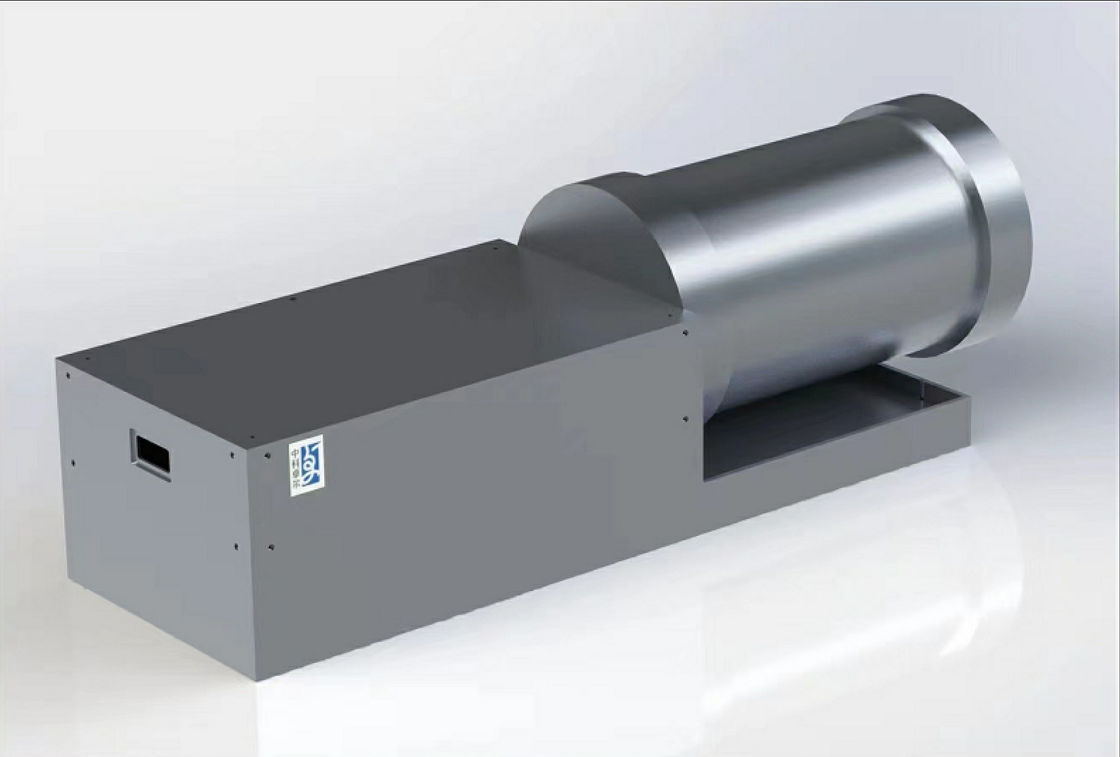

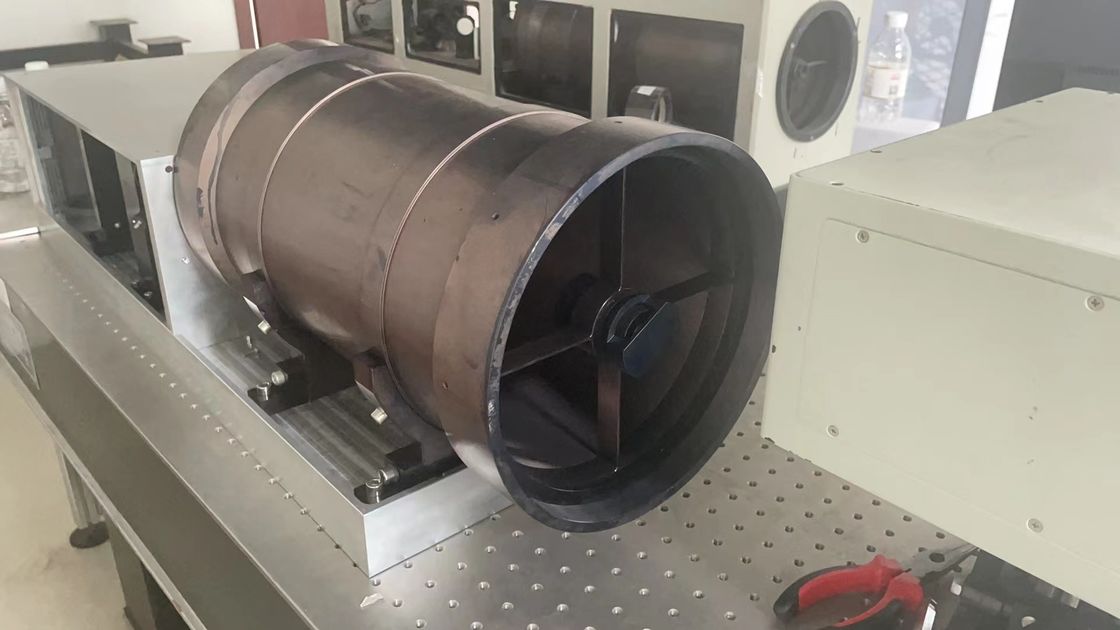

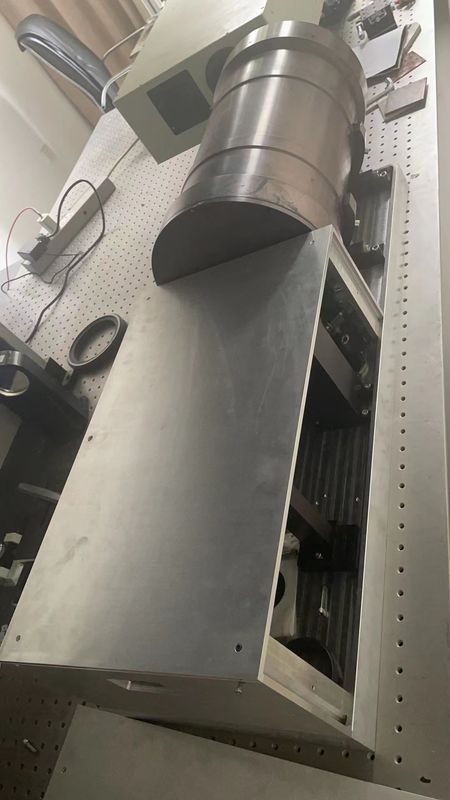

High Precision Flatness Tester
Applications
For flatness high-precision testing of metal components, marble and other sealing components.
Working Principle
Flatness testing technology based on multi-aperture integral detection.
Features
| Model | FI200 |
| Maximum detection caliber | ≥Φ200mm (Customizable) |
| Masking | ≤Φ40mm, window mirror fixation |
| Operating wavelength | 633nm |
| Operating field of view | ≥±2' |
| Minimum band size detected | 4mm |
| Detection precision(PV) |
≤0.2um, band 4mm (The wider the workpiece width, the higher the precision) |
| Note: Customized production available. | |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
