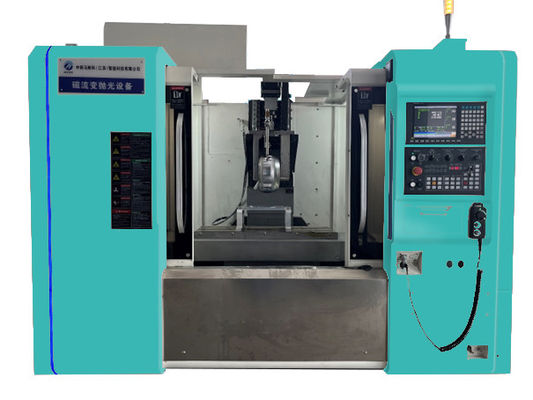

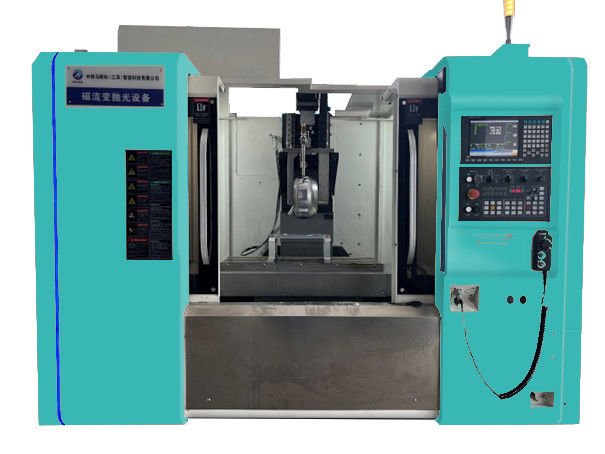

Glass Substrate Defect Magnetorheological Finishing
Applications
Repair of glass substrate defect.

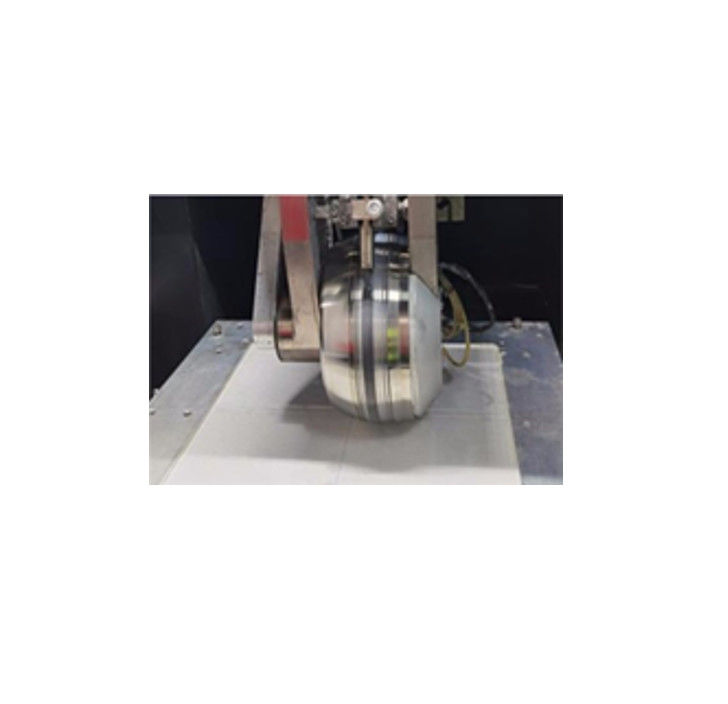

Working Principle
Magnetorheological polishing is that it adds polishing powder into the magnetorheological fluid and polishes workpiece
by the solidification of magnetorheological fluid. Under the action of strong magnetic field, magnetorheological fluid
forms a controllable polishing tool for nodal region which with certain hardness and elasticity in the processing area
and can suffer greater shear stress.
Features
| Model | MF-GS-X—X |
| Functional features |
Detection according to the scratch, automatic positioning of origin point, automatic setting of polishing area and path, and automatic feeding and blanking. |
| Repair size | 800*400mm (Customizable) |
| Minimum movement precision | 1μm |
| Travel distance |
X direction: 800mm, Y direction: 400mm, Z direction: 500mm |
| Product advantages |
Repair on flat surface and curved surface, simple control, width precision control of magnetorheological fluid ribbon, automatic setting of repair origin point, repair path, repair time and other parameters to improve repair efficiency. |
|
Note: Customized production available. |
|
Polishing Effect Inspection Chart
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
