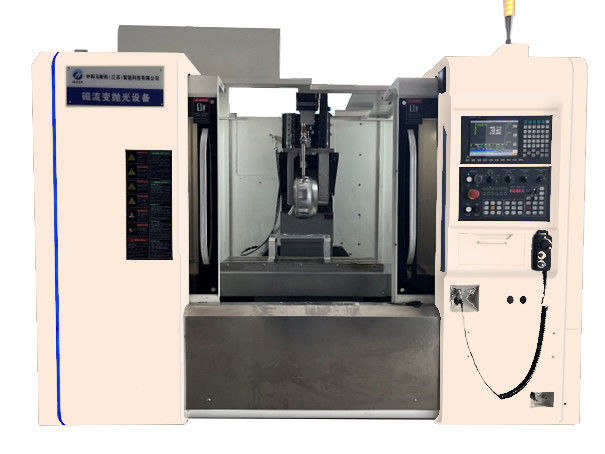

Screen Defect Magnetorheological Finishing
Applications
Repair of screen defect.
Working Principle
Magnetorheological fluid is a suspension composed of magnetic particles, base fluid and stabilizer.
Magnetorheological effect refers to the phenomenon that magnetorheological fluid is a fluxible liquid
when in a non magnetic field, but under the action of a strong magnetic field, its rheological property
changes sharply—which manifests as solid-like property— when removes the magnetic field, its flow

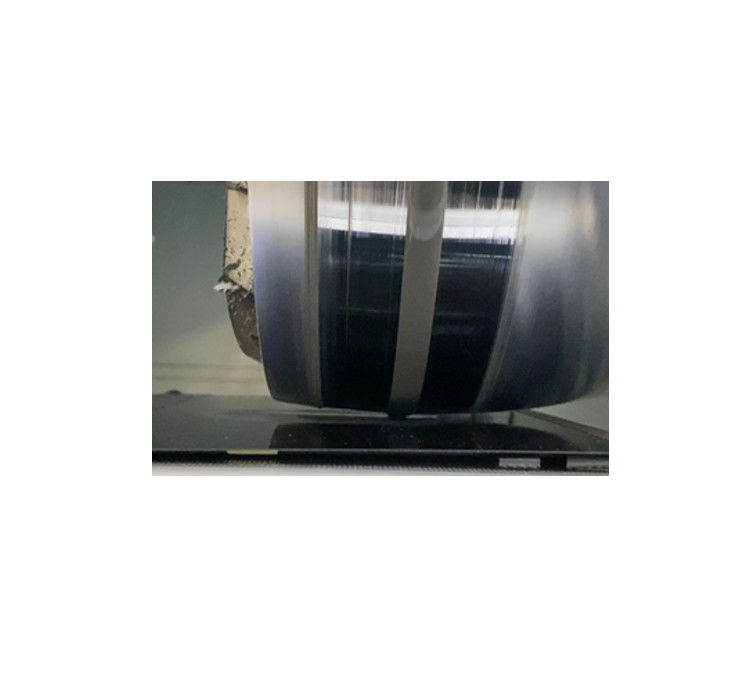

property are restored. Magnetorheological polishing (MRP) technology is that it uses a rapid relative
movement between the workpiece and a flexible “small grinding head”with viscoplastic property
generated from the rheology of magnetorheological polishing fluid occured in a gradient magnetic field,
so as to remove materials on the workpiece surface by a strong shear force on it.
Features
| Model | MF-M-X—X |
| Functional features |
Detection according to the scratch, automatic positioning of origin point, automatic setting of polishing area and path, and automatic feeding and blanking. |
| Repair size | 800*400mm (Customizable) |
| Minimum movement precision | 1μm |
| Travel distance |
X direction: 800mm, Y direction: 400mm, Z direction: 500mm |
| Product advantages |
Repair on flat surface and curved surface, simple control, width precision control of magnetorheological fluid ribbon, automatic setting of repair origin point, repair path, repair time and other parameters to improve repair efficiency. |
|
Note: Customized production available. |
|
Polishing Effect Inspection Chart
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
