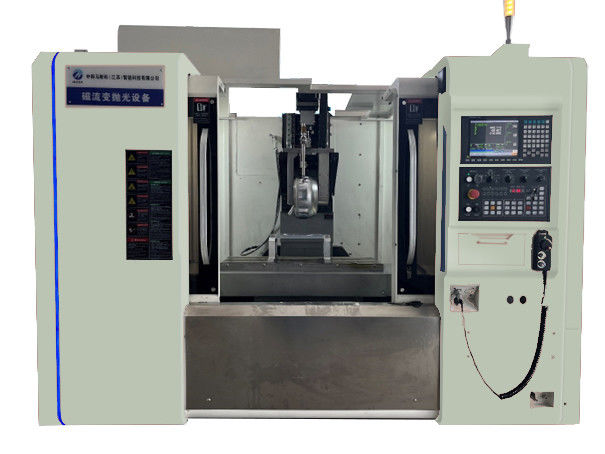

Intelligent Magnetorheological Finishing
Applications
Repair of screen defect, mask defect and ultra-precision optical component defect, etc.
Working Principle
Magnetorheological polishing is a technology that generates convex ribbon made of solid-like Bingham fluid—a
magnetorheological fluid with enhenced viscosity and hardness under the strength of magnetic field—which can
produce a shear force between polishing wheel and workpiece and polish the workpiece in a flexible way. The
shear force on the workpiece is the main acting force of magnetorheological polishing technology for flexible
polishing of workpiece surface. MRP has many advantages such as high precision of processing surface shape,
small surface roughness, easy control of processing process, and no new damage during processing.
Features
| Model | RTB800-400 |
| Functional features |
Detection according to the scratch, automatic positioning of origin point, automatic setting of polishing area and path, and automatic feeding and blanking. |
| Repair size | 800*400mm (Customizable) |
| Minimum movement precision | 1μm |
| Travel distance |
X direction: 800mm, Y direction: 400mm, Z direction: 500mm |
| Product advantages |
Repair on flat surface and curved surface, simple control, width precision control of magnetorheological fluid ribbon, automatic setting of repair origin point, repair path, repair time and other parameters to improve repair efficiency. |
|
Note: Customized production available. |
|

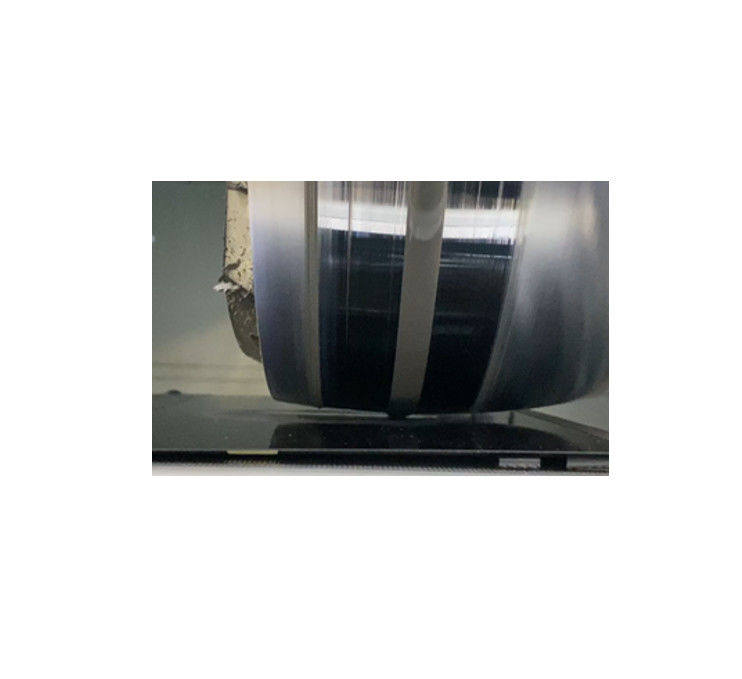

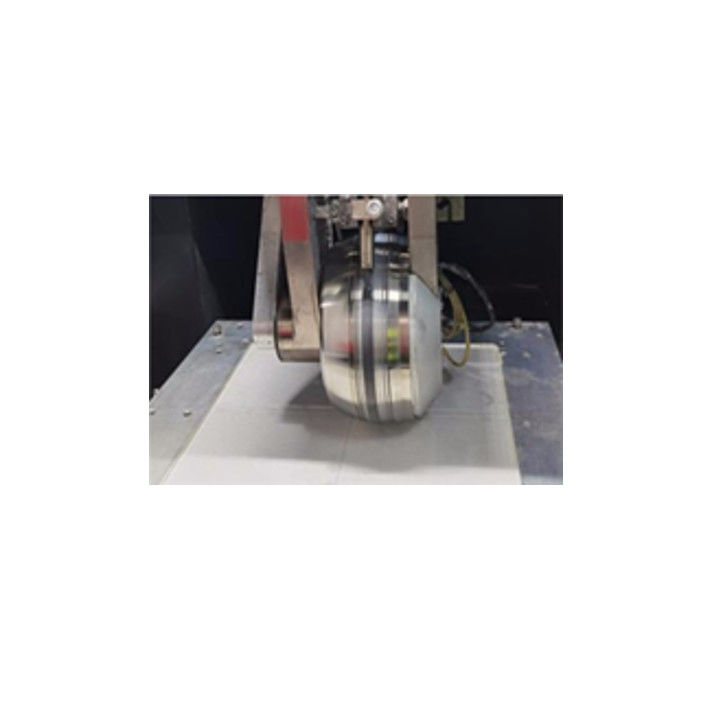

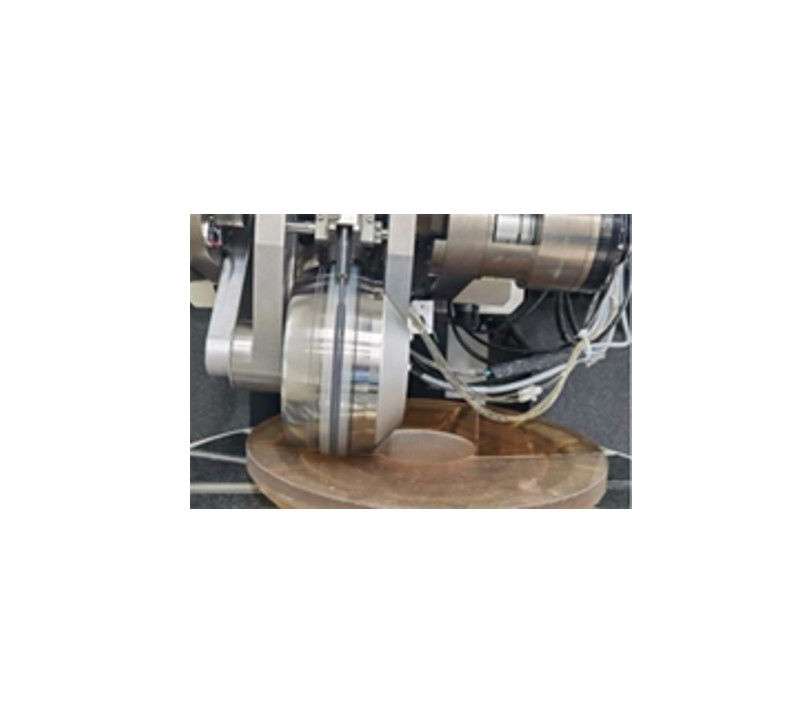

Polishing Effect Inspection Chart
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards
Our products are sold all over the world, you can rest assured.
