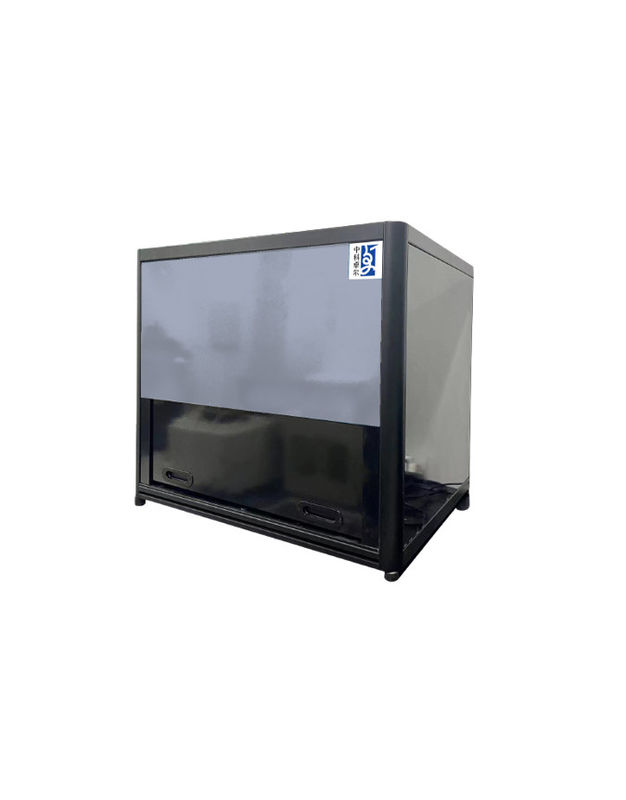

Lens Structural Light Surface Shape Detection Equipment
Applications
Lens surface shape detection.
Working Principle
Structured light measurement belongs to the active optical measurement.It usually projects some shape of structured
light onto the object surface and obtain the 3D information of the object by detecting the offset distance of structured
light.Finally,the 3D information of the object is determined according to the geometric relationships among the camera,
structured light and the object.
Features
| Model | SSD-L-X—X |
| Measuring range | 200×150mm2 |
| Transverse resolution | Conventional 0.25mm, adjustable |
| Measuring precision | Absolute error: ±3μm (100mm in diameter) |
| Note: Customized production available. | |
Detection Image
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts of Our Patents
Parts of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
