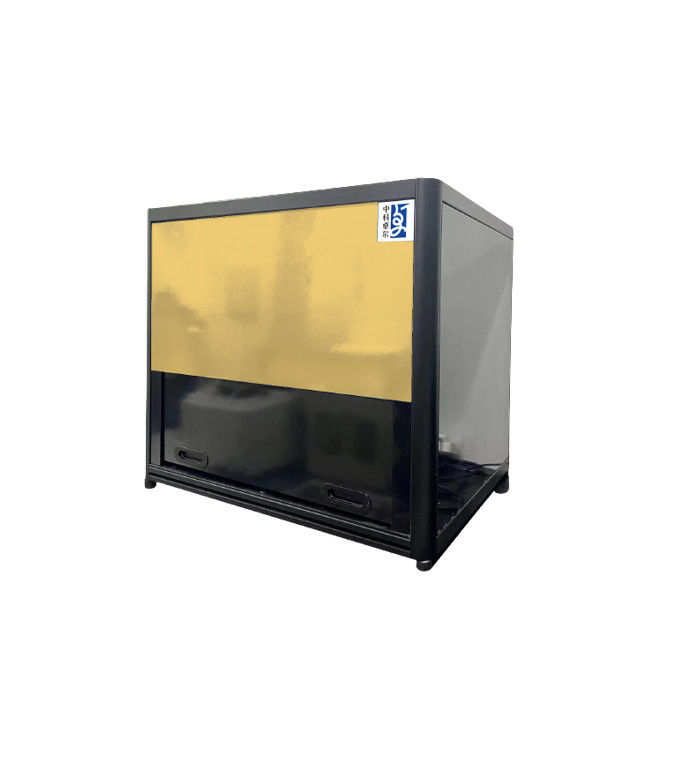

Lamp Reflector Structural Light Surface Shape Detection Equipment
Applications
Lamp reflector shape detection.
Working Principle
Sine fringes generated from computer programming are projected onto the measured object by a projector. Using
camera to photograph the tortuosity of fringes modulated by objects. The point cloud distribution and curvature
distribution of the measured surface are calculated according to the deformation of the fringes, then the surface
shape error distribution can be obtained by comparing point cloud distribution with ideal model.
Features
| Model | SSD-LR-X—X |
| Measuring range | 200×150mm2 |
| Transverse resolution | Conventional 0.25mm, adjustable |
| Measuring precision | Absolute error: ±3μm (100mm in diameter) |
| Note: Customized production available. | |
Detection Image
