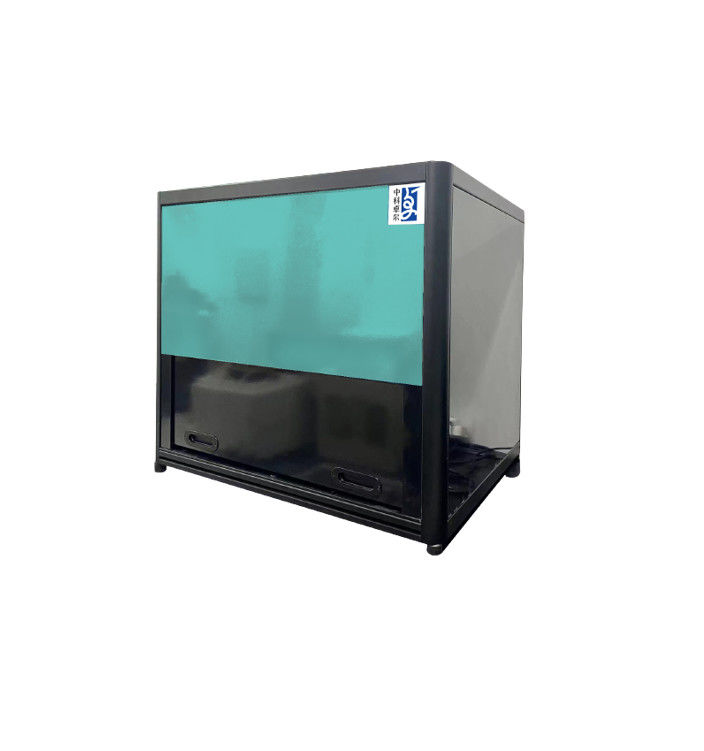

Car Paint Structural Light Surface Shape Detection Equipment
Applications
Car paint surface detection.
Working Principle
Structured light is the active structural information projected to the surface of the measured object by a projector,
such as laser stripe, gray code, sine fringe, etc; however, structured light images are obtained by photographing
the measured surface with a single or multiple cameras; finally, based on the principle of triangulation, the 3D
reconstruction is realized by 3D image analysis and calculation.
Features
| Model | SSD-CP-X—X |
| Measuring range | 200×150mm2 |
| Transverse resolution | Conventional 0.25mm, adjustable |
| Measuring precision | Absolute error: ±3μm (100mm in diameter) |
| Note: Customized production available. | |
Detection Image
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
