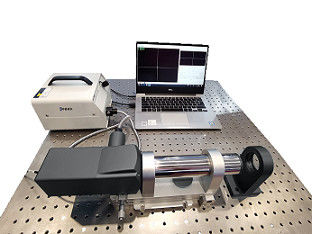

Digital Autocollimator in aerospace
Application Area
Digital Autocollimator has great advantages in ultra-precision non-contact measurement, and is widely
used in precision measurement fields, such as straightness of guide rail platform and flatness of precision
platform,etc. It is one of the necessary conventional measuring instruments in metrology, industrial
production and other departments.
Working Principle
Useing the principle of autocollimation of light to measure flatness.
Features
| Model | DA40-3 |
|
Clear Aperture |
Ф40mm |
| Precision |
20＂± 0.1＂ 600＂± 0.2＂ |
| Repeatability | 0.02＂ |
|
Resolution |
0.002＂ |
| Frame rate | 30Hz |
| Focal length | 300 mm |
| Note: Customized production available. | |
Product Benefits
→ Display optics true image in real time with an industrial camera;
→ Measurement precision reach to 1/20 with sub pixel image processing technology;
→ Recognize multiple optical target(spot, cross-shaped, line-shape, I –shaped);
→ Stable structure design to ensure stability.
Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
