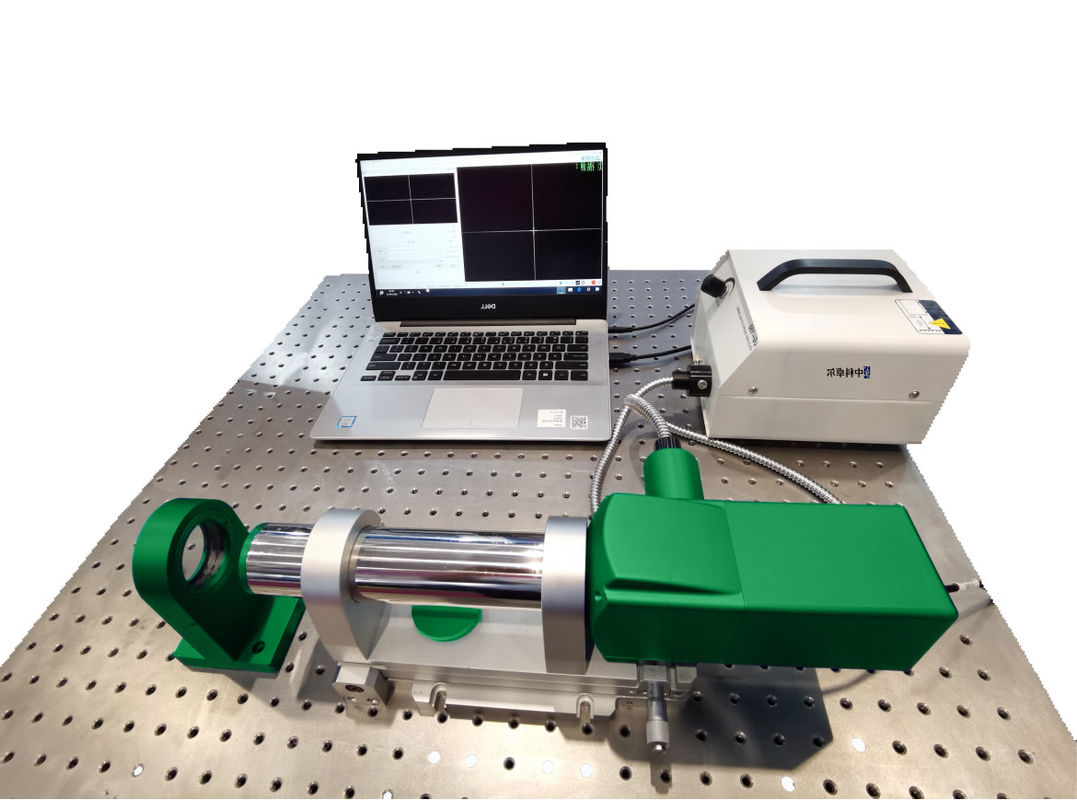

Digital Autocollimator in machining
Application Area
It is a high-precision and non-contact angle measuring instrument. Measurements involve edge angle,
angle error of rectangular prism, flatness, perpendicularity, guide rail straightness, etc. Small angle
automatic measurement can be realized in CNC machine processing field to improve detection efficiency.
Working Principle
Firstly, light passes through the reticle plate on objective lens focal plane, then forms parallel light;
Secondly, parallel light is reflected back by a mirror perpendicular to the optical axis, then passes
through the objective lens and coincidents with the standard line; Thirdly, when the mirror is tilted
at a slight angleα,the reflected light beam's tilt angleis 2α.
Features
| Model | DA40-3 |
|
Clear Aperture |
Ф40mm |
| Precision |
20＂± 0.1＂ 600＂± 0.2＂ |
| Repeatability | 0.02＂ |
|
Resolution |
0.002＂ |
| Frame rate | 30Hz |
| Focal length | 300 mm |
| Note: Customized production available. | |
Product Benefits
→ Display optics true image in real time with an industrial camera;
→ Measurement precision reach to 1/20 with sub pixel image processing technology;
→ Recognize multiple optical target(spot, cross-shaped, line-shape, I –shaped);
→ Stable structure design to ensure stability.
