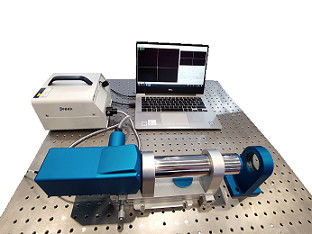

Digital Autocollimator
Application Area
For measuring angle of deflection of reference surface;
For measuring angle of deflection of external beam;
For measuring straightness and perpendicularity of rail;
For measuring rotary location;
For pulsatile measuring of radial direction and angel of dip of rotary location.
Working Principle
A length measurement tool that using optical autocollimation method to measure slight angles.
Features
| Model | DA40-1 |
|
Clear Aperture |
Ф40mm |
| Precision |
20＂±0.5＂ 600＂±1.0＂ |
| Repeatability | 0.1＂ |
|
Resolution |
0.01＂ |
| Frame rate | 30Hz |
| Focal length | 300 mm |
| Note: Customized production available. | |
Product Benefits
→ Display optics true image in real time with an industrial camera;
→ Measurement precision reach to 1/20 with sub pixel image processing technology;
→ Recognize multiple optical target(spot, cross-shaped, line-shape, I –shaped);
→ Stable structure design to ensure stability.
Our Advantages
We are manufacturer.
We have been undertaking Chinese National Science and Technology Major Projects.
We have been undertaking Chinese NationalMajor Laser engineering projects.
Member of Chinese Optical Society.
Deputy director unit of Laser & Optoelectronics Progress.
Member of China testing strategic cooperation alliance.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
