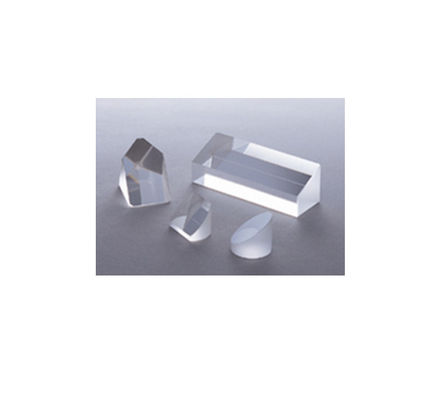

Special Prism
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Pyramid prism is a glass element for retroreflection, which reflects back the incident beam through three 90° angles.
The error of these glass angles must be within a few seconds of accuracy, but the entrance surface can have an
error of more than 5 seconds without significant impact on the performance of pyramid prism.
Features
| Special Prism | |
| Model | Prism-S-X |
| Material | H-K9L(BK7), Quartz |
| Optical film | Specified by the customer |
| Surface precision |
λ/6 |
| Effective size | - |
| Optical axis deviation | ≤5 seconds |
| Surface quality | 20-10 |
| Dimensional tolerance | ±0.1mm |
| Edge rounding | 0.2*45° |
