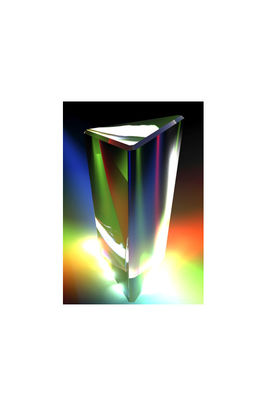

Prism
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Prism, a transparent object bounded by two planes that intersect but are not parallel to each other, which is used
to split or disperse light beams.
Features
| 1. Right Angle Prism | 2. Roof Prism | 3. Pentagonal Prism | 4. Dove prism | 5. Pyramid Prism | 6. Special Prism | |
| Material |
H-K9L(BK7), Quartz |
H-K9L(BK7), Quartz |
H-K9L(BK7), Quartz |
H-K9L(BK7), Quartz |
H-K9L(BK7), Quartz |
H-K9L(BK7), Quartz |
| Optical film |
Specified by the |
Specified by the |
Specified by the |
Specified by the |
Specified by the |
Specified by the |
| Surface precision | λ/6 | λ/6 | λ/6 | λ/6 | λ/6 | λ/6 |
| Effective size | 95% | - | 95% | - | - | - |
| Optical axis deviation | ≤5 seconds | ≤5 seconds | ≤5 seconds | ≤5 seconds | ≤5 seconds | ≤5 seconds |
| Surface quality | 20-10 | 20-10 | 20-10 | 20-10 | 20-10 | 20-10 |
|
Dimensional tolerance |
±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Edge rounding | - | 0.2*45° | - | 0.2*45° | 0.2*45° | 0.2*45° |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
