Spectroscope
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Spectroscope is an optical element that divides the incident light into two different beams at a specified ratio.
Features

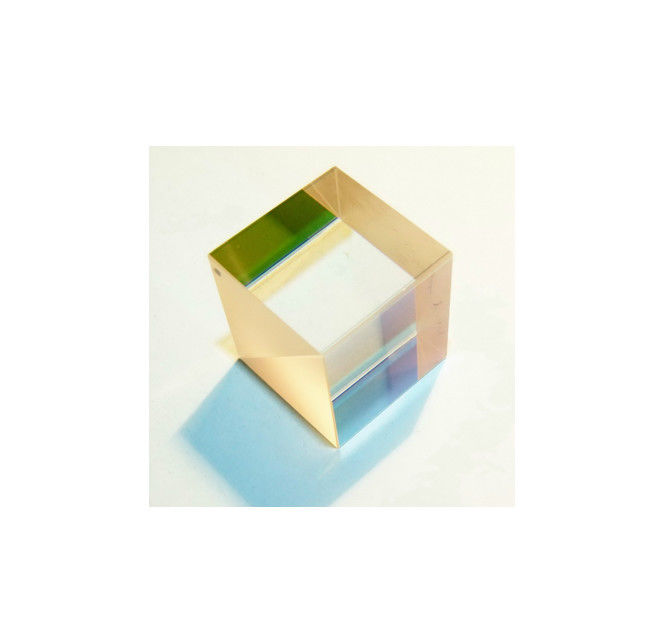

| 1. Cube Beam Splitter 1.1 Non-polarized cubic semi reflector 1.2 Dielectric film cubic semi reflector |
2. Stepped Gratin | 3. Array Mirror | |
| Material | H-K9L(BK7), Quartz, Glass ceramics | H-K9L(BK7), Quartz, Glass ceramics | H-K9L(BK7), Quartz, Glass ceramics |
| Optical film |
Inclined plane: Dielectric multilayer partially reflective film |
Dielectric multilayer partially reflective film | As per actual requirements |
| Surface precision | λ/6 | Smooth(specified by the customer) | λ/10 |
| Effective size | 0.95 | 95% | - |
| Optical axis deviation | ≤30 seconds | ≤30 seconds | ≤30 seconds |
| Surface quality | 40-20 | 20-10 | 20-10 |
| Dimensional tolerance | ±0.1mm | ±0.1mm | ±0.1mm |
| Polarization state | - | - | No polarization |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
