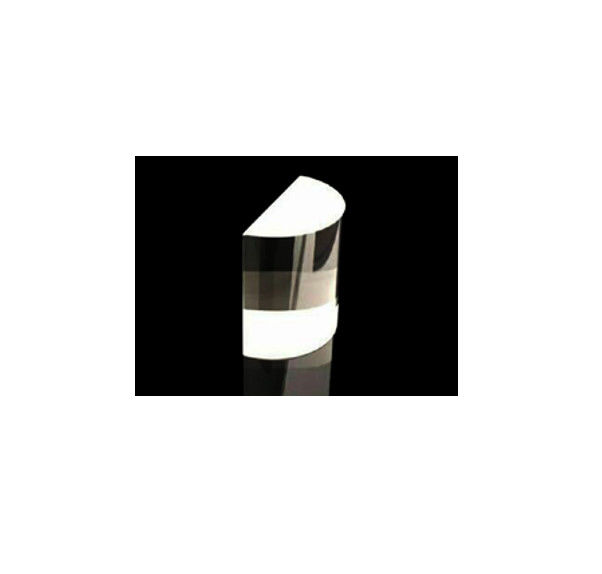

Plano Convex Cylindrical Lens
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● The plano-convex cylindrical lens forms a linear image and is used to control the size of the beam in only one
direction. Such lens is made of BK7, so it is not suitable for UV wavelengths. It can be divided into anti-reflective
multilayer film lens which is uncoated and coated with visible light band.
Features
| Plano Convex Cylindrical Lens | |
| Model | Lens-PCC-X |
| Material | H-K9L(BK7), Quartz |
| Optical film | Specified by the customer |
| Surface precision | λ/2 |
| Surface inhomogeneity | λ/2 |
| Surface quality | 20-10 |
| Center thickness | ±0.1mm |
| Dimensional tolerance | ±0.1mm |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
