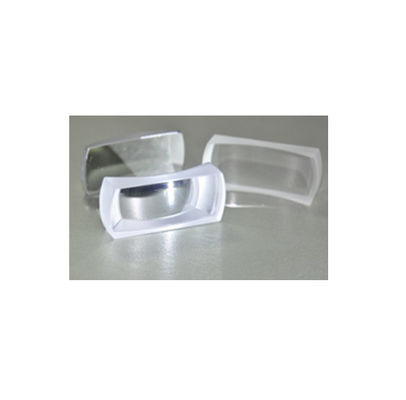

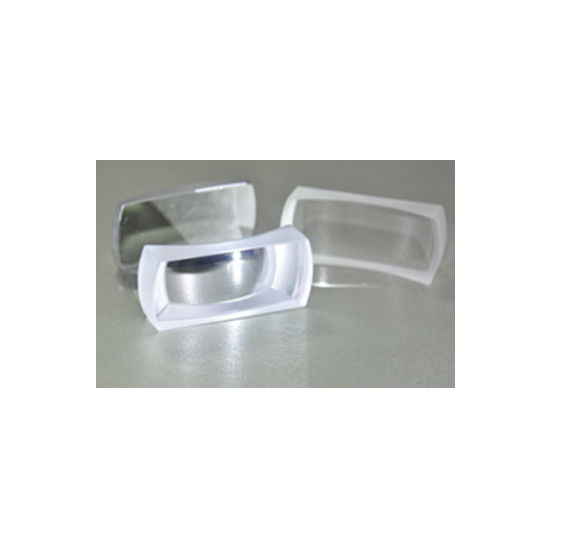

Biconcave Lens
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● The biconcave lens has a negative focal length and is used to diverge a beam of parallel light. The anti-reflective
multilayer film lens which is uncoated and coated with visible light band can be provided.
Features
| Biconcave Lens | |
| Model | Lens-BI-X |

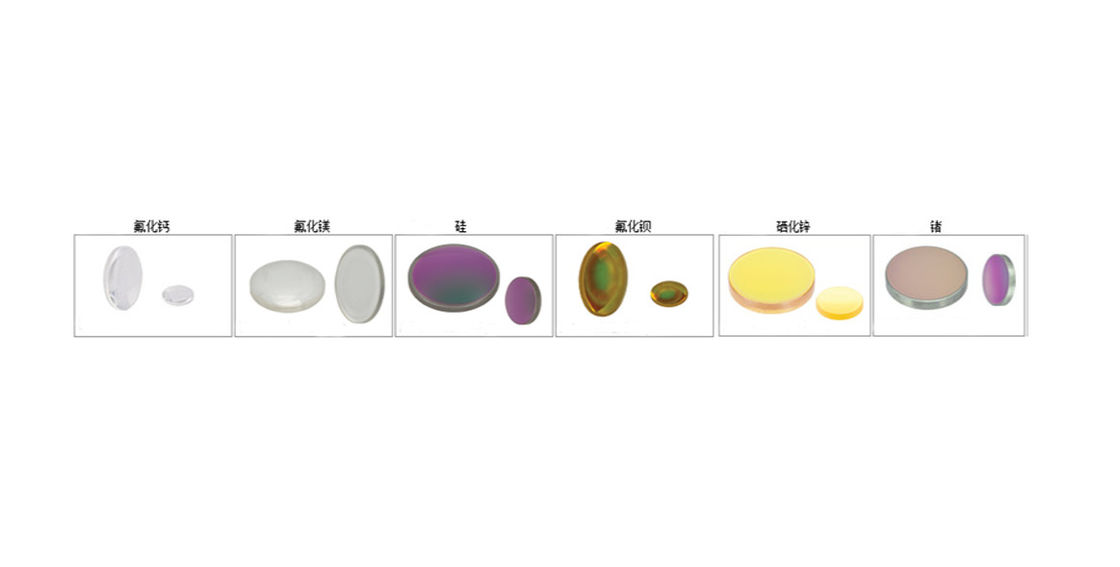

| Material | H-K9L(BK7), Quartz, Sapphire, CaF2, BaF2, MgF2, Ge, ZnSe |
| Optical film |
Specified by the customer |
| Surface precision | λ/6 |
| Surface inhomogeneity | λ/4 |
| Surface quality |
20-10 for H-K9L(BK7), Quartz, Sapphire |
| Focus tolerance | ±1% |
| Dimensional tolerance | ±0.1mm |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
