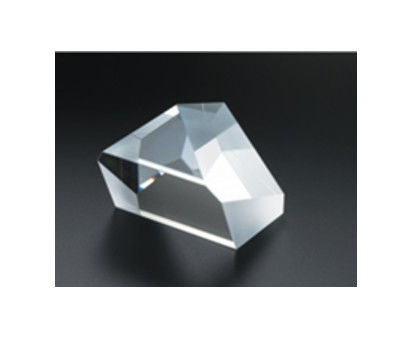

Roof Prism
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Due to smaller volume and allowing the objective lens and eyepiece to be aligned, roof prism is often used for
extremely compact binoculars.
● The key to the roof prism is the exist of roof surface. The so-called roof surface is that there will be a roof-shaped
reflective surface sandwiched by two reflective surfaces in the optical path, and the edges of the two surfaces are
in the middle of the optical path. Therefore, we can see a demarcation line in the middle of some roof prisms, which
can also be interpreted as splitting the light beam in half and then splicing them together.
Features
| Roof Prism | |
| Model | Prism-R-X |
| Material | H-K9L(BK7), Quartz |
| Optical film | Specified by the customer |
| Surface precision | λ/6 |
| Effective size | - |
| Optical axis deviation | ≤5 seconds |
| Surface quality | 20-10 |
| Dimensional tolerance | ±0.1mm |
| Edge rounding | 0.2*45° |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
