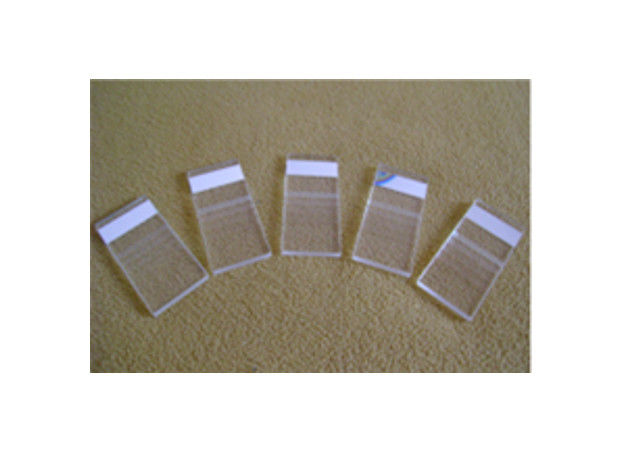

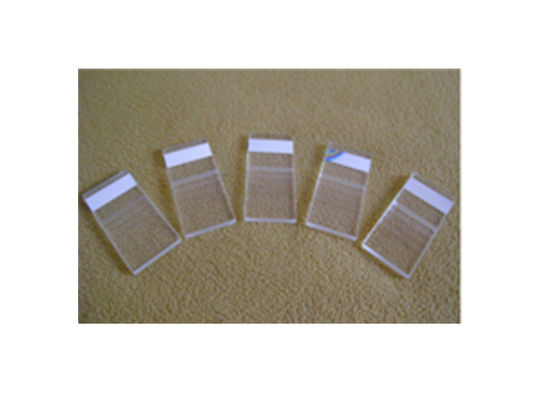

Stepped Grating
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● High-resolution stepped grating is designed for application to a high order special low-period grating . It is usually
used with another grating or prism realize the overlapping diffraction orders separation.
● The stepped grating is made of precise glass substrate and theoretically has a resolution of 80% to 90%. With a
high flare angle, it is an ideal choice for high-resolution spectral applications.
Features
| Stepped Grating | |
| Model | Spectroscope-SG-X |
| Material | H-K9L(BK7), Quartz, Glass ceramics |
| Optical film | Dielectric multilayer partially reflective film |
| Surface precision | Smooth (specified by the customer) |
| Effective size | 95% |
| Optical axis deviation | ≤30 seconds |
| Surface quality | 20-10 |
| Dimensional tolerance | ±0.1mm |
