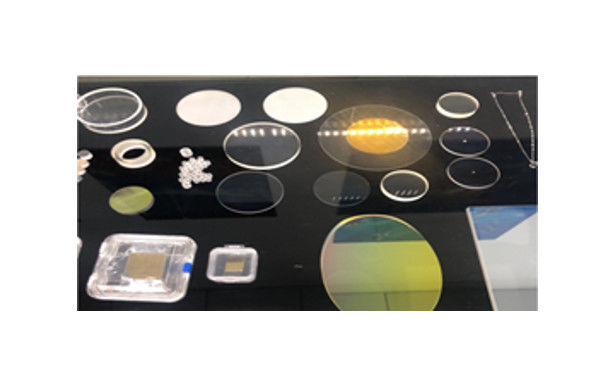

Silver Film Reflector
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Total reflector is made of a flat substrate coated with one layer of silver film on the surface by vacuum coating.
● From VIS to IR, these products have high reflectivity and are almost not affected by the incidence angle.
● Pure silver film reflector and silver film reflector covered with silicon dioxide (SiO2) protective film are available.
Silicon dioxide (SiO2) protective film can prevent scratching and oxidation, and its reflectivity is lower than that
of pure silver film.
● Silicon dioxide (SiO2) protective film is optimized to maximize the reflectivity of VIS wavelength.
Features
| Silver Film Reflector | |
| Model | Reflector-S-X |
| Material |
H-K9L(BK7), Quartz, Glass ceramics |
| Optical film | AG＋SiO (silver film + silicon oxide protective film) AG (silver film) |
| Surface precision | λ/10 |
| Parallelism | ≤30 seconds |
| Surface quality | 40-20 |
| Dimensional tolerance | ±0.1mm |
| Wavelength for measurement | 632.8nm |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
