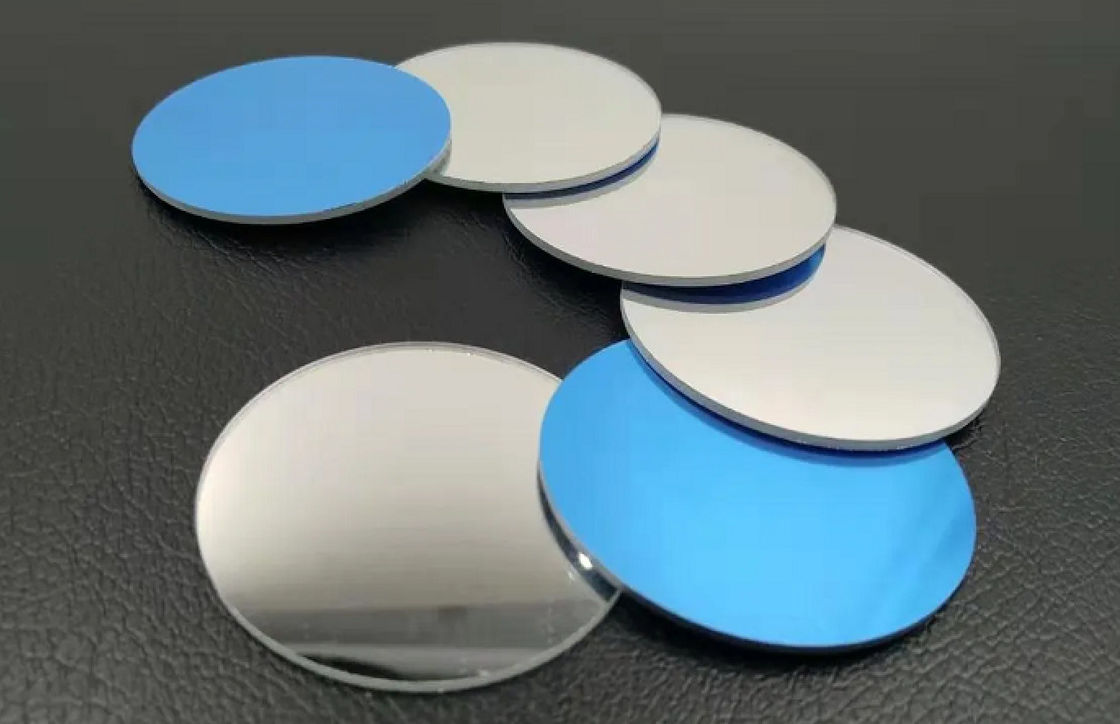

Reflector
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Reflector is an optical element that works by the law of reflection.
Features
|
1. Silver Film |
2. Aluminum Film |
3. Dielectric Film |
4. Gold Film |
5. Semi Reflector |
|
| Material |
H-K9L(BK7) |
H-K9L(BK7) |
H-K9L(BK7) |
H-K9L(BK7) |
H-K9L(BK7), quartz,CaF2 |
| Optical film |
AG＋SiO protective film |
Al＋MgF2 protective film |
Multi-layer dielectric film |
Cr＋Au |
F: Dielectric multilayer film |
| Surface precision | λ/10 | λ/10 | λ/10 | λ/10 | λ/10 |
| Parallelism | ≤30 seconds | ≤30 seconds | ≤30 seconds | ≤30 seconds | ≤30 seconds |
| Surface quality | 40-20 | 40-20 | 40-20 | 40-20 | 20-10 |
| Dimensional tolerance | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
|
Wavelength for |
632.8nm | 632.8nm | 632.8nm | 632.8nm | - |
| Polarization state | - | - | - | - |
No polarization or circular |
Our Advantages
We are manufacturer.
Mature process.
Reply within 24 working hours.
Our ISO Certification
Parts Of Our Patents
Parts Of Our Awards and Qualifications of R&D
Our products are sold all over the world, you can rest assured.
