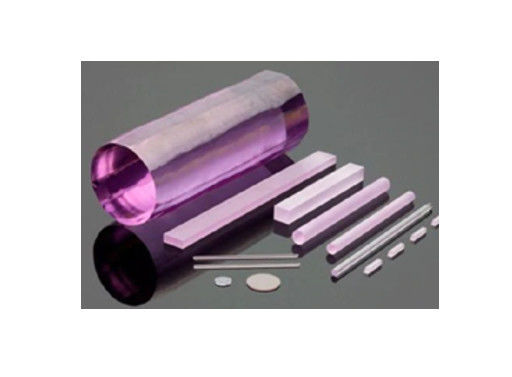

YAG Yttrium Aluminum Garnet Window
Processing Capacity
Capable to realize the complete processes in optical design, instrument design, component high-precision molding,
planar processing, spherical processing, aspheric processing, coating, etc.
Applications
Photoelectric information; aerospace; new energy; nuclear power and nuclear energy equipment and other fields.
Performance
● Yttrium aluminum garnet (YAG) monocrystal is the most important laser crystal, which is widely used in industrial,
medical and science fields. It is also widely used in a variety of solid-state laser systems: frequency doubling
continuous wave, high-energy Q-switching, cavity dumping, etc.
● Advantages: low light threshold, high gain, high efficiency, low 1064 nm loss; it also has the advantages of high
optics quality, good thermal conductivity, high thermal shock resistance and mechanical strength, which makes
YAG the most suitable and commercially laser crystal available for continuous, pulsed and mode-locked lasers.
Features
| YAG Yttrium Aluminum Garnet Window | |||
| Model | Window-YAG-X | ||
| Reflectivity of antireflection film | ≤0.25% @1064nm | ||
| End face accuracy | λ/10 @632.8nm | ||
| End face parallelism | ≤10 seconds | ||
| Surface quality | 10-5 | ||
| Perpendicularity of end face to axis | ≤5 seconds | ||
| Dimension |
D7mmxT145mm,D8mmxT145mm, D8mmxT165mm,D8mmxT185mm, D3mmxT78mm, etc. |
||
