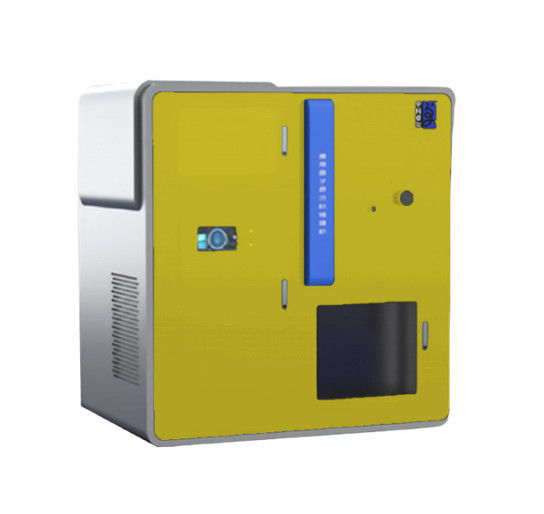

Atomic Layer Deposition ALD Equipment For Organic Electronic Packaging Industry

Atomic Layer Deposition ALD Equipment For Organic Electronic Packaging Industry

  • High Light

    Organic Electronic Packaging Industry Atomic Layer Deposition

    ,

    OLED ald equipment

    ,

    Organic Electronic Packaging Industry ald equipment

  • Weight
    Customizable
  • Size
    Customizable
  • Guarantee Period
    1 Year Or Case By Case
  • Customizable
    Available
  • Shipping Terms
    By Sea / Air / Multimodal Transport
  • Place of Origin
    Chengdu, P.R.CHINA
  • Brand Name
    ZEIT
  • Certification
    Case by case
  • Model Number
    ALD-OEP-X—X
  • Minimum Order Quantity
    1set
  • Price
    Case by case
  • Packaging Details
    Wooden case
  • Delivery Time
    Case by case
  • Payment Terms
    T/T
  • Supply Ability
    Case by case

Atomic Layer Deposition ALD Equipment For Organic Electronic Packaging Industry

Atomic Layer Deposition in Organic Electronic Packaging Industry





Applications

     Applications      Specific Purpose


     Organic electronic packaging



     Packaging of organic light-emitting diode (OLED), etc.



Working Principle

The advantage of atomic layer deposition technology is that, because the surface reaction of ALD technology is

self-limiting, materials of the desired precise thickness can be made by repeating this self-limitation constantly.

This technology has good step coverage and large area of thickness uniformity. Continuous growth makes nano

film materials pinhole-free and high-density.



Features

     Model      ALD-OEP-X—X
     Coating film system      AL2O3, TiO2, ZnO, etc
     Coating temperature range      Normal temperature to 500℃ (Customizable)
     Coating vacuum chamber size

     Inner diameter: 1200mm, Height: 500mm (Customizable)

     Vacuum chamber structure      According to customer’s requirements
     Background vacuum      <5×10-7mbar
     Coating thickness      ≥0.15nm
     Thickness control precision      ±0.1nm
     Coating size      200×200mm² / 400×400mm² / 1200×1200 mm², etc
     Film thickness uniformity      ≤±0.5%
     Precursor and carrier gas

     Trimethylaluminum, titanium tetrachloride, diethyl zinc, pure water,

      nitrogen, etc.

     Note: Customized production available.



Coating Samples

Atomic Layer Deposition ALD Equipment For Organic Electronic Packaging Industry 0Atomic Layer Deposition ALD Equipment For Organic Electronic Packaging Industry 1



Process Steps
→ Place the substrate for coating into the vacuum chamber;
→ Vacuumize the vacuum chamber at high and low temperature, and rotate the substrate synchronously;
→ Start coating: the substrate is contacted with precursor in sequence and without simultaneous reaction;
→ Purge it with high-purity nitrogen gas after each reaction;
→ Stop rotating the substrate after the film thickness is up to standard and the operation of purging and cooling is

   completed, then take out the substrate after the vacuum breaking conditions are met.



Our Advantages

We are manufacturer.

Mature process.

Reply within 24 working hours.
