Laser Interferometer Standard Lens
Application Area

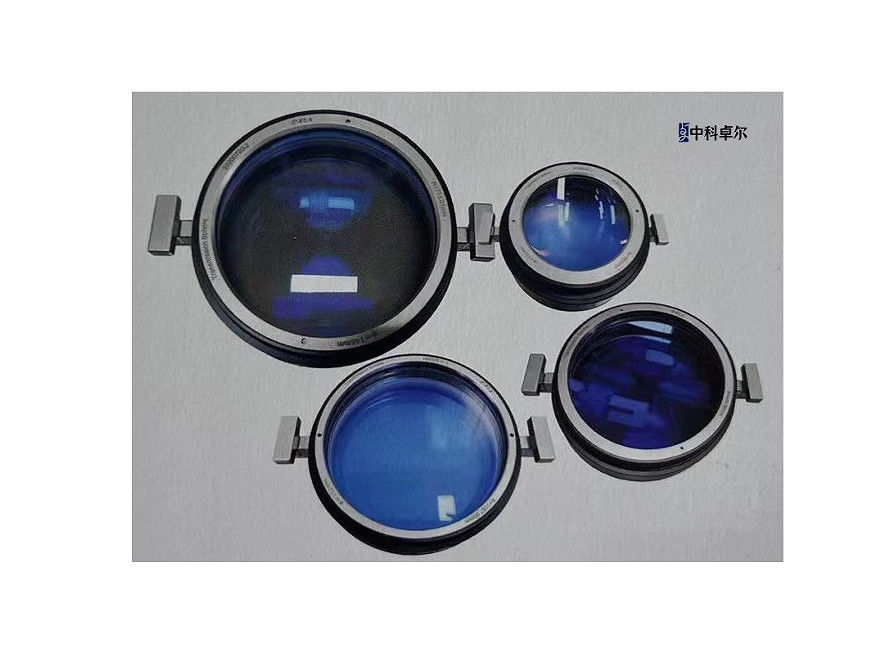

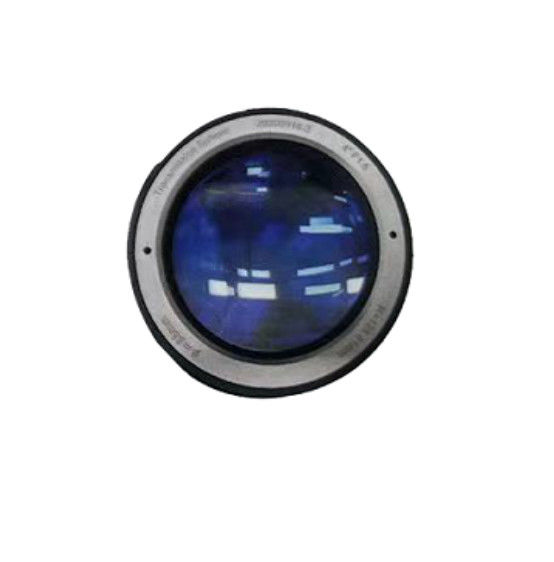

Laser Interferometer standard lens.
Spherical Lens Specifications
| Model | INF-L-6 | INF-L-7 | INF-L-8 | INF-L-9 | INF-L-10 |
|
Aperture |
4 inch | 4 inch | 4 inch | 4 inch | 4 inch |
| F/ # | 3.3 | 5.6 | 7.1 | 10.7 | 24 |
|
R1(mm) |
313.447 | 533.199 | 699.329 | 1039.428 | 2249.96 |
| R2(mm) | 310.747 | 530.519 | 696.557 | 1036.68 | 2243.44 |
|
D1(mm) |
98 | 98 | 99 | 98 | 98 |
| D2(mm) | 97 | 97 | 98 | 97 | 97.8 |
| Note: Customized production available. | |||||
