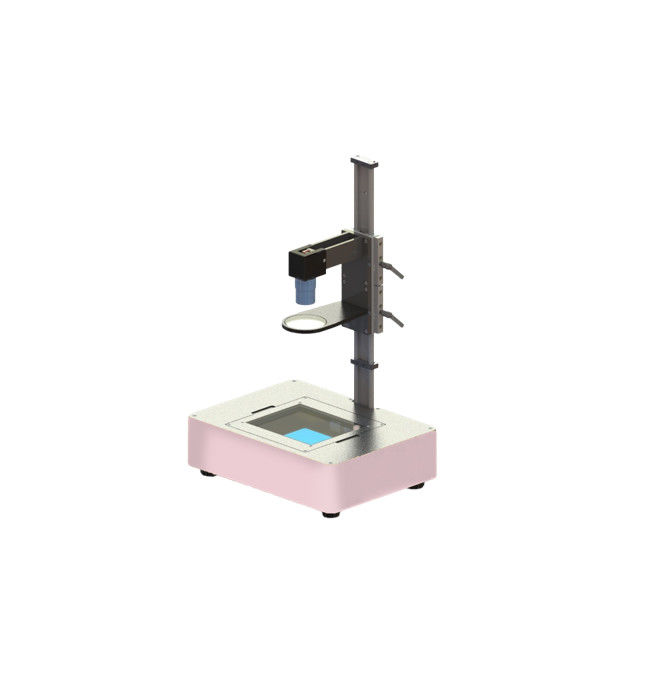

Transparent Resin Stress Birefringence Detection Equipment
Applications
|
VIS-visible |
Transparent resin |
Working Principle
When light penetrates a transparent substance with birefringent property, the light polarization state will change.
The results of light change are collected and analyzed to obtain the value of stress birefringence.
Features
| Model |
SBD-TR-X—X |
| Working Mode | Real-time measurement |
| Function | Stress magnitude, stress distribution |
| Detection wave band | VIS-520nm, 590nm, 650nm |
| Testing range | 1~110nm& 1~280nm |
| Spatial resolution | 0.05mm |
| Test repeatability | 0.1nm |
| Measurement frequency | >15FPS |
|
Note: Customized production available. |
|
Detection Images
