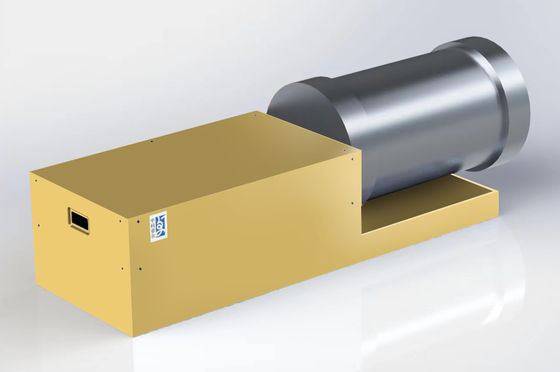

Metal Component High Precision Flatness Tester
Applications
For flatness high-precision testing of metal components, such as hardwares and sheet metal parts.
Working Principle
Flatness testing technology based on multi-aperture integral detection.
Features
| Model | FT-MC-X—X |
|
Maximum detection caliber |
≥Φ200mm (Customizable) |
| Masking | ≤Φ40mm, window mirror fixation |
| Operating wavelength | 633nm |
| Operating field of view | ≥±2' |
| Minimum band size detected | 4mm |
| Detection precision (PV) | ≤0.2um, band 4mm
(The wider the workpiece width, the higher the precision) |
|
Note: Customized production available. |
|
